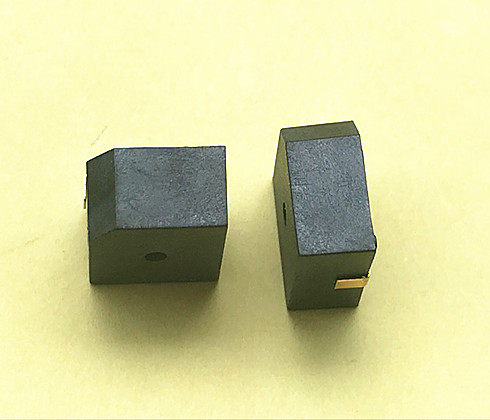

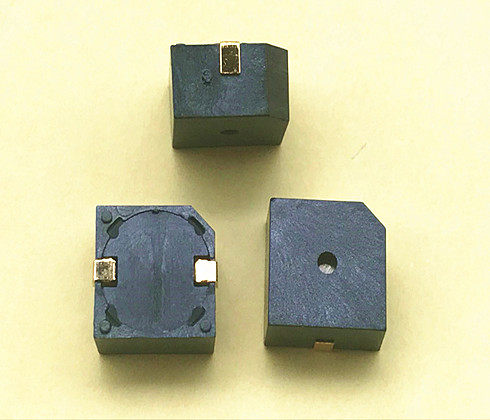

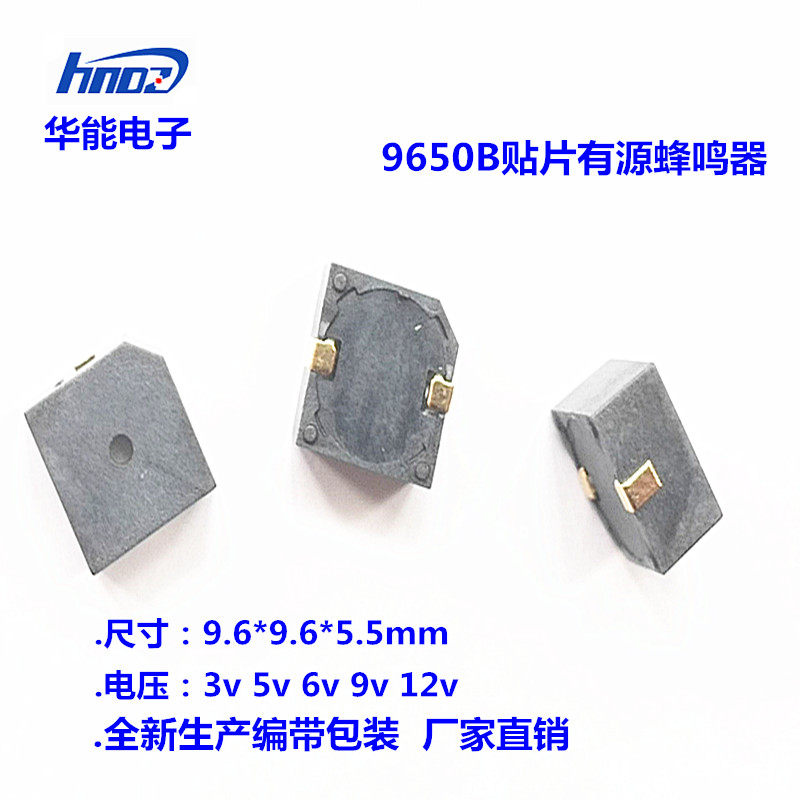

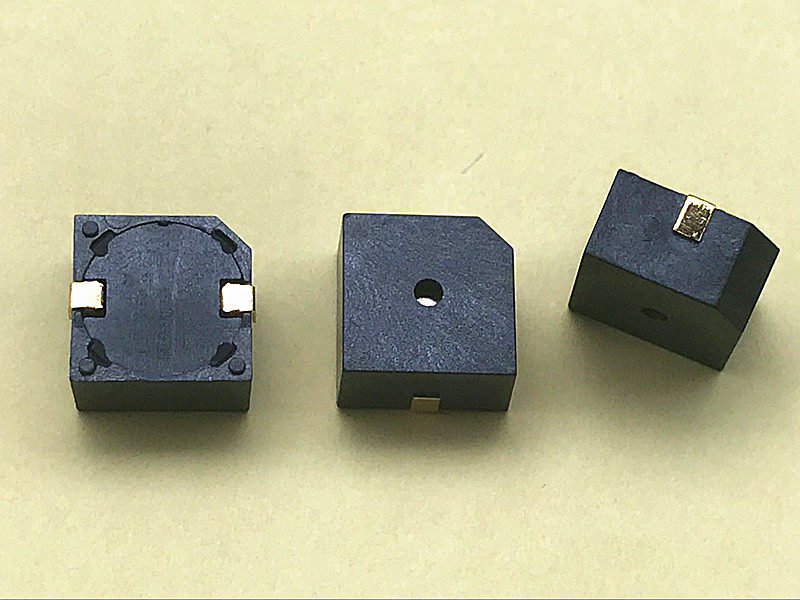

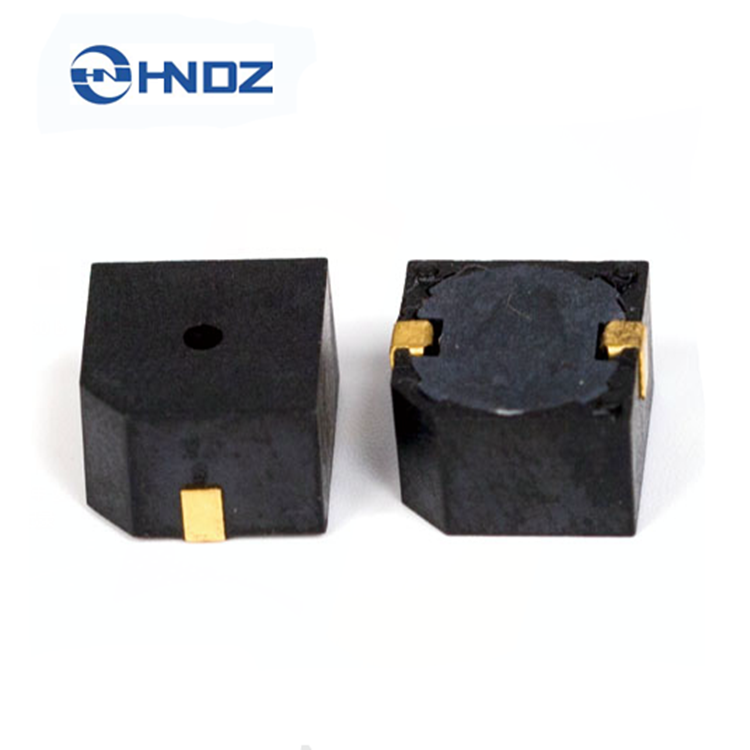

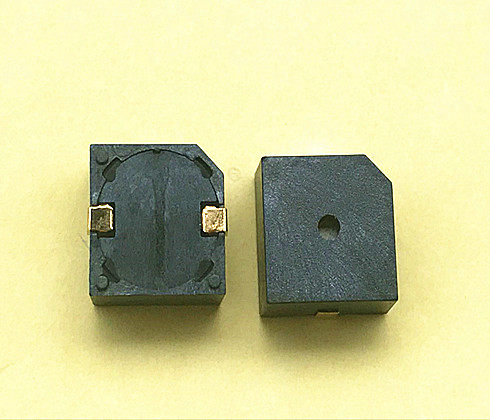

Пьезозуммер HN9650B SMD от Jiangsu Huaneng с опциями напряжения 3V 5V 12V

Пьезозуммер HN9650B SMD с активным приводом от Jiangsu Huaneng Electronics, напряжение 3V 5V 12V

Stock:

марка: HNDZ

SKU:{{ product.sku }}

модель: {{ product.model }}

вес: {{ product.weight }} product.

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

количество:

информация о продукте Attribute

SPECIFICATION

No.	Item	Unit	Specification	Condition
1	Oscillation Frequency	KHz	2.7±0.3
2	Operating Voltage	VDC	4~7
3	Rated Voltage	VDC	5
4	Current Consumption	mA	MAX. 30	at Rated Voltage
5	Sound Pressure Level	dB	MIN. 85	at 10cm at Rated Voltage
6	Tone Nature		Single
7	Operating Temperature	℃	-20 ~ +70
8	Storage Temperature	℃	-30 ~ +85
9	Dimension	mm	9.6x 9.6x H5.0	See appearance drawing
10	Weight (MAX)	gram	1.5
11	Housing Material		PPS( Black )
12	Leading Pin		Plated Brass(Au)	See appearance drawing
13	Environmental Protection Regulation		RoHS

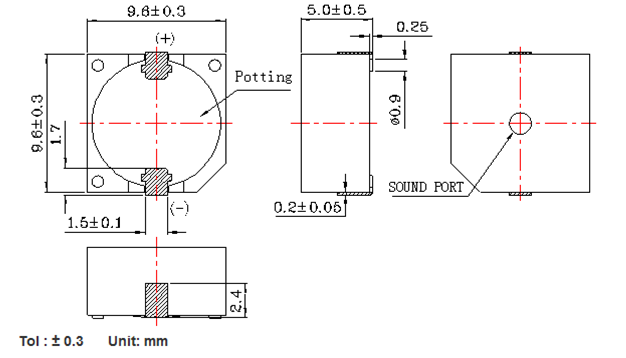

C. APPEARANCE DRAWING

Tol : ± 0.3 Unit: mm

D.TESTING METHOD
Standard Measurement conditions
Temperature:25±2℃ Humidity:45-65%

Acoustic Characteristics:

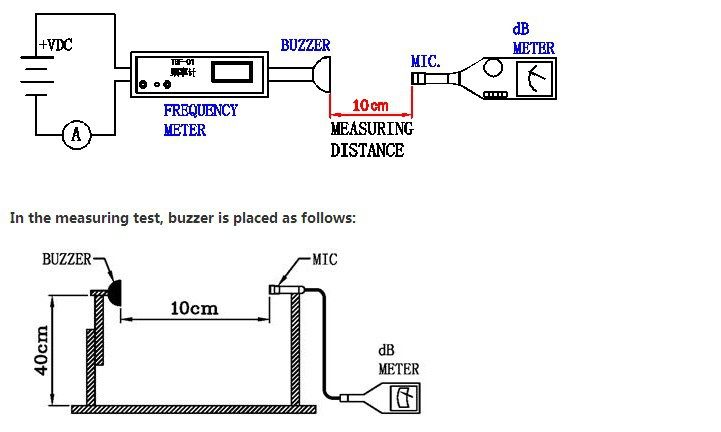

The oscillation frequency, current consumption and sound pressure are measured by the measuring instruments shown below

In the measuring test, buzzer is placed as follows:

E. VOLTAGE / CURRENT / SOUND PRESSURE CHARACTERISTICS

F. Soldering Condition

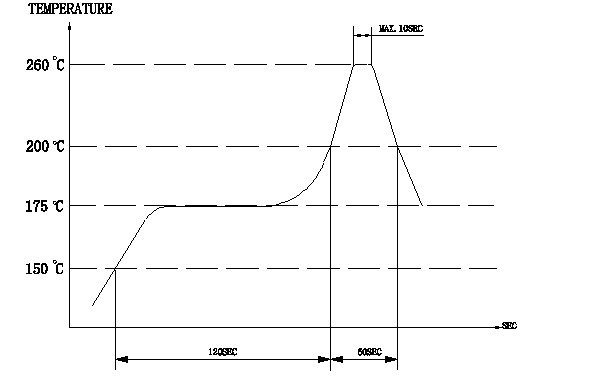

(1)Recommendable reflow soldering condition is as follows
(Reflow soldering is twice)
Note:It is requested that reflow soldering should be executed after heat of product goes down to normal.

Heat resistant line
(Used when heat resistant reliability test is performed)
(2)Manual soldering
Manual soldering temperature 350 ℃ within 5 sec.

G. RELIABILITY TEST

NO.	ITEM	TEST CONDITION AND REQUIREMENT
1	High Temperature Test (Storage)	After being placed in a chamber with 852℃ for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: 10dB.
2	Low Temperature Test (Storage)	After being Placed in a chamber with -302℃ for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: 10dB.
3	Humidity Test	After being Placed in a chamber with 90-95% R.H. at 402℃ for 96 hours and then being placed in normal condition for 2 hours. Allowable variation of SPL after test: 10dB.
4	Temperature Cycle Test	The part shall be subjected to 5 cycles. One cycle shall be consist of: Allowable variation of SPL after test: 10dB.
5	Drop Test	Drop on a hard wood board of 4cm thick, any directions ,6 times, at the height of 75cm . Allowable variation of SPL after test: 10dB.
6	Vibration Test	After being applied vibration of amplitude of 1.5mm with 10 to 55 Hz band of vibration frequency to each of 3 perpendicular directions for 2 hours . Allowable variation of SPL after test: 10dB.
7	Solderability Test	Lead terminals are immersed in rosin for 5 seconds and then immersed in solder bath of +3005℃ for 31 seconds . 90% min. lead terminals shall be wet with solder (Except the edge of terminals).
8	Terminal Strength Pulling Test	The force of 9.8N(1.0kg) is applied to each terminal in axial direction for 10 seconds. No visible damage and cutting off.

TEST CONDITION.
Standard Test Condition : a) Temperature : +5 ~ +35℃ b) Humidity : 45-85% c) Pressure : 860-1060mbar
Judgment Test Condition : a) Temperature : +25 ± 2℃ b) Humidity : 60-70% c) Pressure : 860-1060mbar

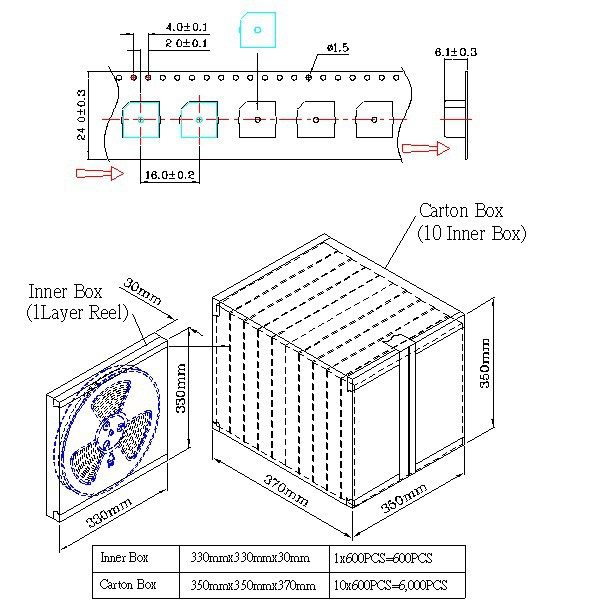

H. PACKING STANDARD

Default
Бренд	HNDZ
Цветовые варианты	9650B 3V, 9650B 5V, 9650B 12V
